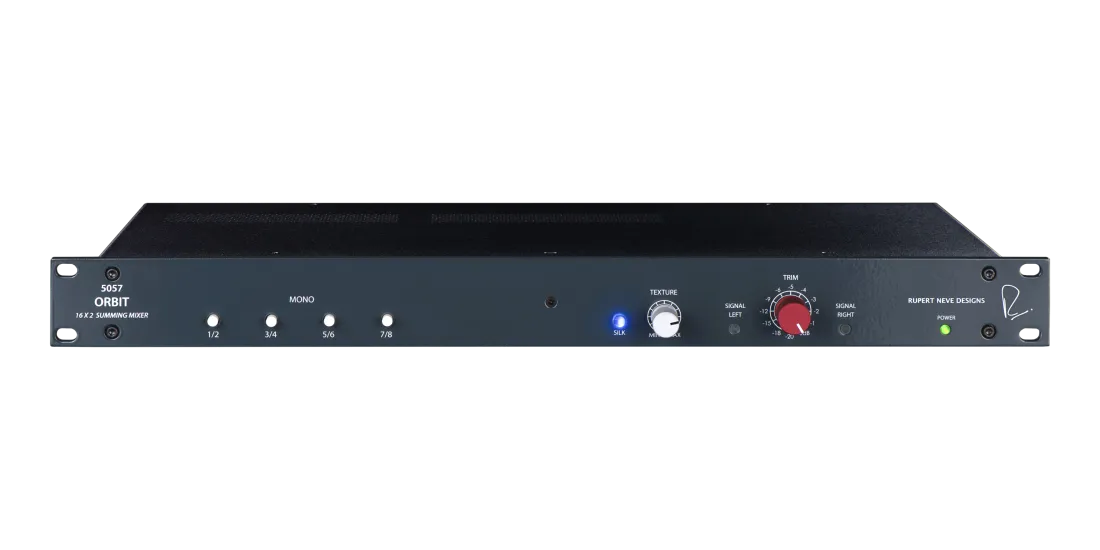

Firmly rooted in six decades of console design experience, the 5057 Orbit gives your mixes the legendary tonality, power, and wide-open soundstage that only Rupert Neve's class-A analog summing can provide. Coupled with Rupert's famous custom audio transformers and Silk Red & Blue circuitry for variable harmonic saturation, the Orbit launches sterile in-the-box mixes to new heights of tone, depth and clarity without compromising the recallable convenience and repeatability of your DAW-based workflow.
Features
• 16 Channel /- 21V Class-A mix buss for massive headroom
• Silk Red & Blue modes with Texture control to precisely dial in the desired amount of classic tone
• Dual-tap output transformers create rich harmonic character without clipping the next device in the chain
• Mono switches enable you to precisely center any mono mix elements like vocals, kick, snare and bass
• Exceptional linearity and accuracy, better than /-0.1dB per channel
• Ultra-low crosstalk for wide open stereo imaging and sonic depth
• Expandable for higher channel count via buss link to other 5057 units
• Repeatable, rapid DAW-based recall while adding the rich, unrivaled sound quality of Rupert Neve Designs
• Robust and compact 1U chassis design with DB25 inputs and XLR outputs
• Combine with other Rupert Neve Designs summing products to create a world-class modular mix system
Specifications
Input Impedance: 16 kΩ
Frequency Response:
10 Hz to 50 kHz: /- 0.1dB
150 kHz: -3dB
Noise (22 Hz - 22 kHz): -90 dBu typical
Maximum Input Level @ 1 kHz: 26dBu
Maximum Output Level @ 1 kHz: 26dBu
THD N% (22 Hz - 22 kHz):
0 dBu @ 1kHz: 0.003%
20 dBu @ 1kHz: 0.0006%
Crosstalk :
1 kHz: -103 dBu
10 kHz: -93 dBu
Product Dimensions (W x D x H): 48.3 x 22.9 x 4.4 cm / 19" x 9" x 1.75"
